What is an Expansion Joint? Definition, Purpose & Types of Movement
An expansion joint is an assembly designed to safely absorb movement between two sections of a structure — caused by temperature change, seismic activity, wind, settlement or loading — while keeping the joint sealed against water, air, fire and sound.
Definition

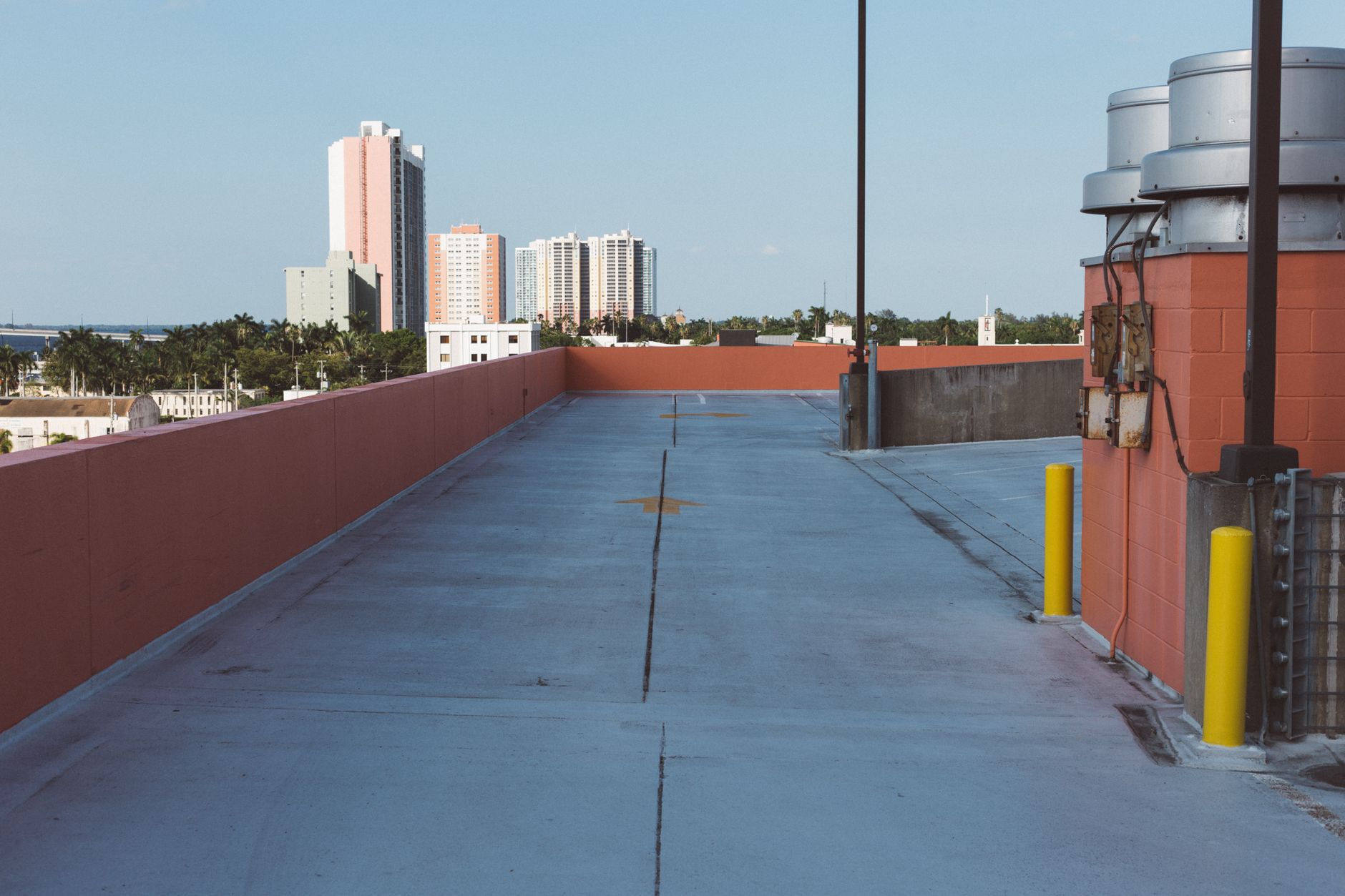

A building expansion joint is a deliberate gap between two structural sections, fitted with a cover or seal system that lets those sections move independently without cracking, leaking or losing fire separation. Without it, the forces created by movement would be transferred into the structure, causing cracks in floors, walls and facades, water ingress, and eventually structural damage.
Why structures need expansion joints
Buildings and their materials are never static. Six kinds of movement drive the need for an expansion joint:
| Movement | Cause | Notes |
|---|---|---|
| Thermal | Temperature rise/fall expands and contracts materials | The most common cause — larger over long spans and in high day-night temperature swings |
| Seismic | Earthquake ground motion | Large, multi-directional — needs high-movement, 3-axis seismic joints |
| Wind sway | Lateral wind load on tall buildings | Cyclic horizontal movement at facade joints |
| Settlement | Uneven foundation movement over time | Differential vertical movement between blocks |
| Live-load deflection | Traffic, occupancy and equipment loads | Vertical movement in floors, decks and bridges |
| Moisture & creep | Concrete shrinkage, creep, moisture change | Long-term dimensional change, especially in concrete |
How an expansion joint works
An expansion joint spans the structural gap with two functions working together:
- Movement accommodation — a flexible seal, sliding cover plate or self-centring mechanism lets the two sides move apart, together, sideways and vertically.
- Sealing — the same assembly keeps the joint watertight, and where required provides fire resistance, air sealing, acoustic isolation and a trafficable surface.
Systems range from simple elastomeric seals for small thermal joints to large-movement, three-axis seismic covers rated to ASTM E1399 Category IV.
Expansion joint vs control joint vs construction joint
These terms are often confused. They are not the same:
| Joint | Purpose |
|---|---|
| Expansion joint | Accommodates active movement between structural sections, with a cover/seal system |
| Control (contraction) joint | A planned line of weakness that forces concrete to crack in a controlled location as it shrinks |
| Construction joint | The interface where one concrete pour meets the next — not intended to move |
| Isolation joint | Separates a slab or element from adjacent construction so loads/movement aren’t transferred |
Where expansion joints are used
In buildings: floors, walls, ceilings, roofs, facades, parking decks, stairs and podiums — especially in airports, hospitals, malls, metros, stadiums and high-rise towers. In bridges & infrastructure: modular, strip-seal, finger and compression-seal deck joints. In piping & ducts: rubber and metal bellows. This knowledge bank focuses on building/architectural expansion joint systems.
Frequently asked questions
Why do buildings need expansion joints?
Because building materials expand, contract and move with temperature, earthquakes, wind, settlement and loading. An expansion joint lets adjacent sections move independently while staying sealed, preventing cracks, leaks and structural damage.
What is the difference between an expansion joint and a control joint?
An expansion joint accommodates active movement between structural sections using a cover or seal system. A control joint is a planned line of weakness that makes concrete crack in a chosen location as it shrinks — it is not designed to move.
How much movement does an expansion joint handle?
It depends on the system. Small thermal joints handle a few millimetres; large seismic building joints accommodate up to about ±100% of the joint width, with openings up to roughly 1,800 mm.
